Rhino SafeStow4 - Mercedes Sprinter 2006-2018
*Roof Bars & Ladder Not Included
The leading ladder loading system, trusted by over 30,000 tradespeople and fleet vehicles across the world.
With the SafeStow4, ladder storage and handling has never been safer, easier, or more secure. Say goodbye to climbing onto your vehicle’s roof or stretching to store and secure your ladders. Thanks to gas ram-assisted lifting, the SafeStow4 allows you to effortlessly mount and dismount ladders from the safety of ground level. Trusted by fleets worldwide for over 15 years, we’ve revolutionised the way you handle your ladders.
Available in four variants; Single Ladder, Double Ladder, Extra Wide Ladder and Double CAT Ladder.
Rhino SafeStow4 Features:
Loading and unloading assistance
Industry-leading and unmatched by any other product on the market, the SafeStow4 revolutionizes ladder handling. Ladders can be mounted and dismounted with minimal effort, all from the safety of ground level, thanks to adjustable gas rams. These rams offer five different positions to accommodate various ladder weights, fully optimizing the assisted lifting and lowering performance based on your vehicle.

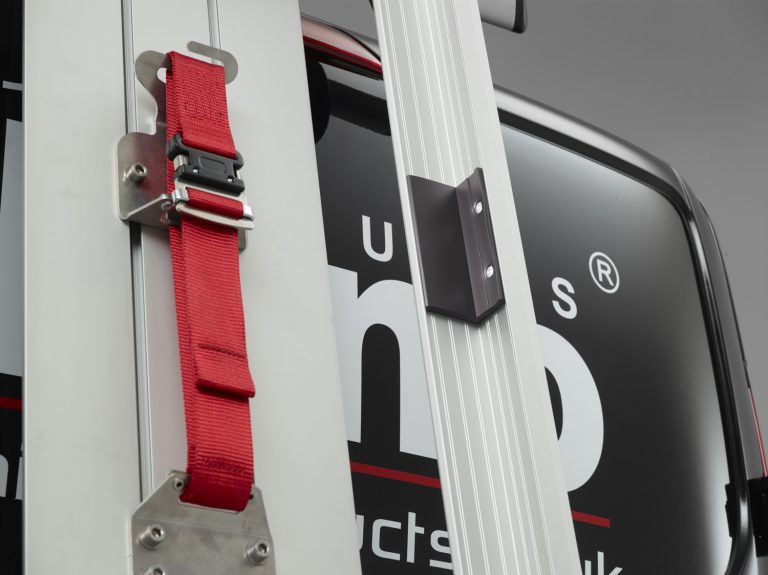

Belt straps & storage
The SafeStow4's BeltStow system utilises two straps to pull the ladder in place tightly to minimise any movement while in transit or while deploying ladders. The innovative BeltStow system also ensures that both straps can be stored when a ladder is not being held - preventing them moving freely and noisily during transit.
Two cross bars with rubber inlay
The SafeStow4 comes with 2 cross bars with rubber inlay to cushion and protect the ladder, minimising any risk of abrasive damage. The introduction of rubber inlays ensure that your ladder doesn’t come into contact with the aluminium of the SafeStow4 at any point, to prevent damage occurring.
SafeClamp included
Our industry leading ladder clamp is included as standard, securing the ladder downwards while the SafeStow4's straps pull it in opposite lateral directions. Two SafeClamps are provided for double SafeStow4 systems. * Please note: SafeClamp is not compatible with our CAT ladder SafeStow4 systems.
Load Stops
Four load stops are included with the SafeStow4 as standard, catering for different width ladders, minimising any damage to the ladders while in transit.
Rubber inserts on brace bar
Rubber inserts on the brace bar effectively absorb vibrations and prevent metal-on-metal contact, significantly reducing rattling noise during transit.
Rubber bump stops
The front cross rail has rubber bump stops which cushion the system as it slides into the stowed position, for quiet and smooth operation.
Lockable for added theft-deterrence
By incorporating a robust locking mechanism, it acts as a deterrent to potential thieves, ensuring that ladders remain secure when left unattended. (padlock not included)
Additional Benefits:
• Fully adjustable gas-ram assisted lifting and lowering
• Fully configurable to suit your van and ladders for optimum performance (detailed user manual provided)
• Constructed from highly robust aluminium alloy with stainless steel components
• Ultra-low overall height, aerodynamic design and low wind noise
• Brass bushes and fully sealed roller bearings generate a super smooth and effortless gliding action
• Anti-vibration assembly
• Partial pre-assembly available upon request
• Standard fitting bracket (compatible with Rhino racks and bars)
Technical Specification
Overall length: 2200mm / 3100mm (for any other dimensions or technical details please get in touch with our team)
Single ladder system weight: 61kg
Double ladder system weight: 71kg
Extra wide ladder system weight: 63kg
CAT ladder system weight: 67kg
Safety: Crash tested
Material: Anodised aluminium, polymer composites, polyester straps, powder coated steel
Warranty: 3-years
Maximum ladder weight: 60kg (consult handbook included for specific details on ladder length compatible with your vehicle – or ask our team for more information).
Compatible with any Rhino roof bars or roof rack.
Included in the kit:
Your brand new industry-leading SafeStow4 ladder loading system.
All bolts and fixings needed for assembly, correct set up and mounting on the vehicle.
A detailed instruction booklet to help you tailor the setup of the system for optimum performance on your van.
Detailed assembly instructions.
Four options available:
Single ladder system – The standard configuration, one SafeClamp included.
Double ladder system – Wider crossbars allow for two ladders to be secured side by side. Two SafeClamps included.
Extra wide ladder system – A wider lower crossbar allows for this specific ladder option. One SafeClamp included.
CAT ladder system – Comes with spacers to tilt the ladders upwards, so as not to obscure windshield visibility. No SafeClamp included as, not compatible with the spacers.
